CPDB Pro Power Module
CPDB Pro is a power distribution board with an integrated power monitor. It offers high accuracy and a wide input voltage range, and is intended for multirotors.
Features
- 10~60V input (3S-14S battery)
- More accurate voltage and current monitoring
- Up to 5A power output
- 60A measurement and 60A output current
- 5V 5A and 12V 4A outputs
Main functions:
- Dual 5V and 12V BEC rails, powering the controller and payloads such as gimbals at the same time
- Measures voltage and outputs an analog signal to the controller
- Measures current and outputs an analog signal to the controller
- Up to 8 power outputs (voltage approximately equal to the battery voltage)
Specifications
| Item | Value |
|---|---|
| Operating voltage | 10~60V (3-14S LiPo) |
| Max current | 60A |
| Current error | ±0.2A |
| Voltage error | ±0.1V |
| 12V out | 4A |
| 5V out | 2A |
| FC power | 5A |
| Battery connector | XT60 |
| 12V out / 5V out / FC power | GH1.25 |
| Weight | 35g |

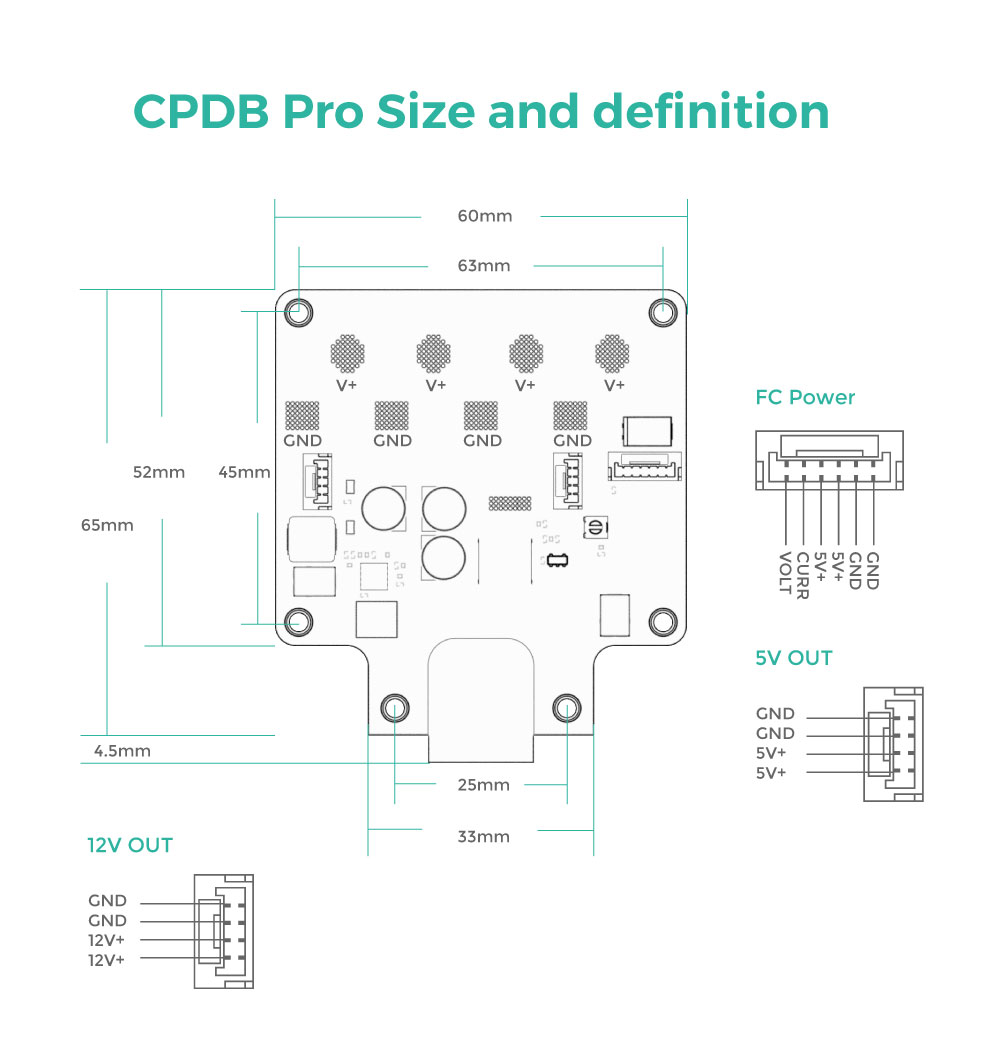

Dimensions
Power monitor setup
CPDB Pro uses the same power monitor settings as HV PM. See Power monitor:
- ArduPilot: battery monitor setup and calibration in Mission Planner
- PX4: the corresponding setup in QGroundControl
NOTE
With the CUAV LGC ground station you can drag the power module icon onto the matching monitor entry for a graphical setup.
