X25 SUPER Controller
The X25 SUPER is a brand-new industrial-grade unmanned systems core intelligent controller launched by CUAV®, integrating cutting-edge sensing technologies and industrial manufacturing expertise. It integrates Murata's flagship SCH16T-K10 and TDK industrial-grade IMU, featuring a multi-redundant industrial-grade IMU architecture, a high-performance H7 processor, and a dual temperature compensation system. Equipped with dual-layer vibration reduction protection and a wide-range power supply architecture, it delivers a stable, precise, and efficient intelligent control core for industrial unmanned operations.
Feature
- Multi-redundant industrial-grade IMU architecture
- 10V~18V wide-range power supply architecture
- High-performance STM32H7 processor
- Dual temperature compensation system
- Dual-layer vibration reduction protection
- PCBA with conformal coating
- Compatible with ArduPilot mainstream open-source systems
- Supports PMU 2 series power management units for more industry applications
Hardware parameters
| ITEM | Specification |
|---|---|
| Processor | STM32H7 Arm® Cortex®-M7, 480 MHz |
| Version | X25 SUPER |
| Gyro&Acce | SCH16T-K10 / IIM-42652 / IIM-42653 |
| Compass | RM3100 |
| Barometer | TDK ICP-20100 / Bosch BMP581 |
| PWM OUT | 16 |
| Power IN (CAN) | 2 (model: 5055670871-5055650801) |
| GPS Ports | 2 |
| TELEM Ports | 2 |
| UART4 Ports | 1 |
| RCIN | 1 (PPM/SBUS/DSM and other protocols) |
| DSU Port (Debug) | 1 |
| Ethernet | 1 |
| CAN Bus | CAN1×3 CAN2×2 |
| SPI6 Expansion | 1 |
| ADC 3V3 | 1 |
| ADC 6V6 | 1 |
| USB Port | 1 (Type-C) |
| I2C Ports | 3 |
| RSSI Port | 1 |
| Power Module | PMU 2 Lite |
| Input Voltage | USB: 4.75V ~ 5.25V PMU 2 Lite: 20V ~ 70V Power: 10V ~ 18V |
| Operating Temperature | -20℃ ~ +85°C |
| Size | 76.5 × 45.45 × 32.2 mm |
| Weight | 108.5g |

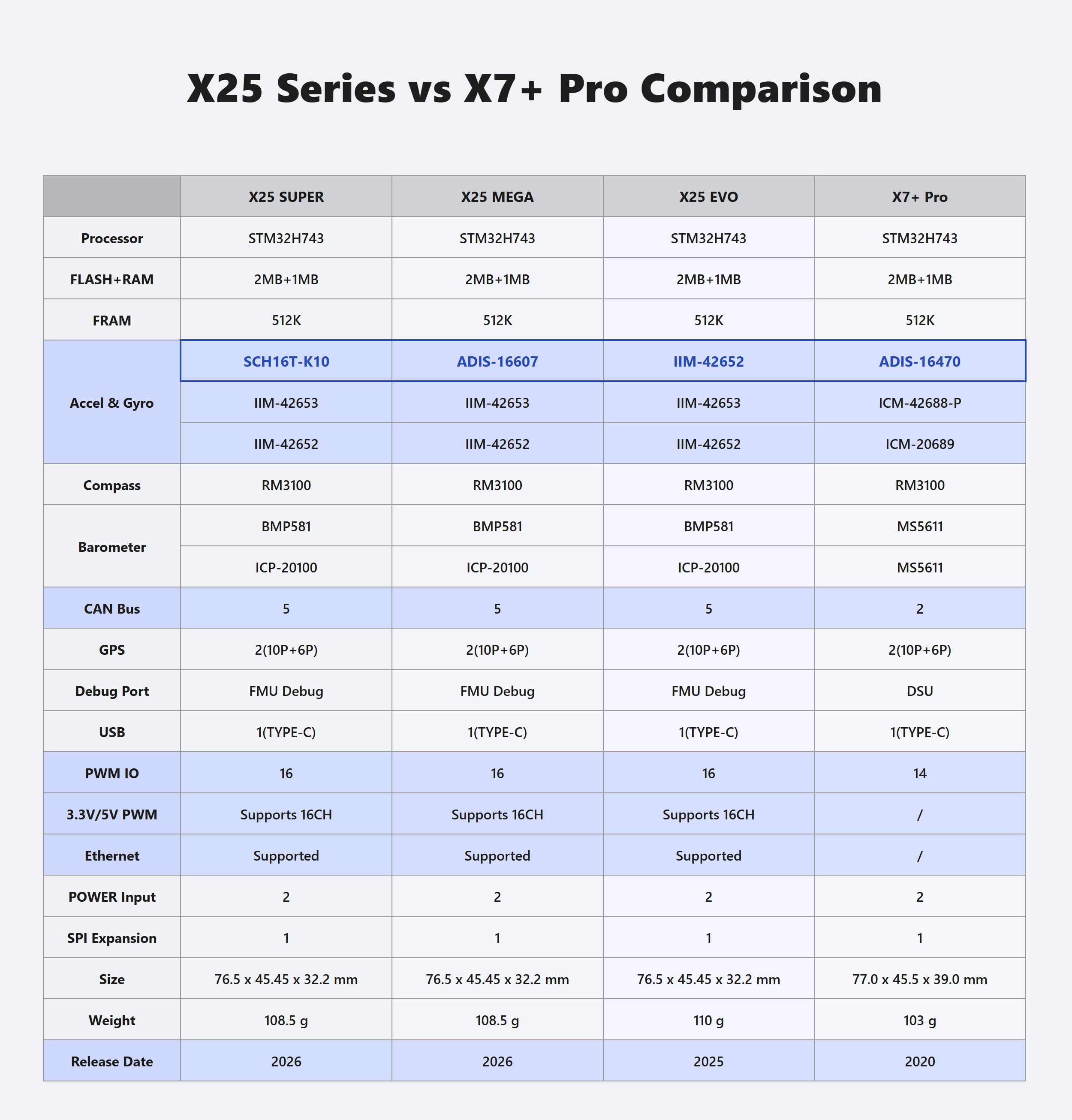

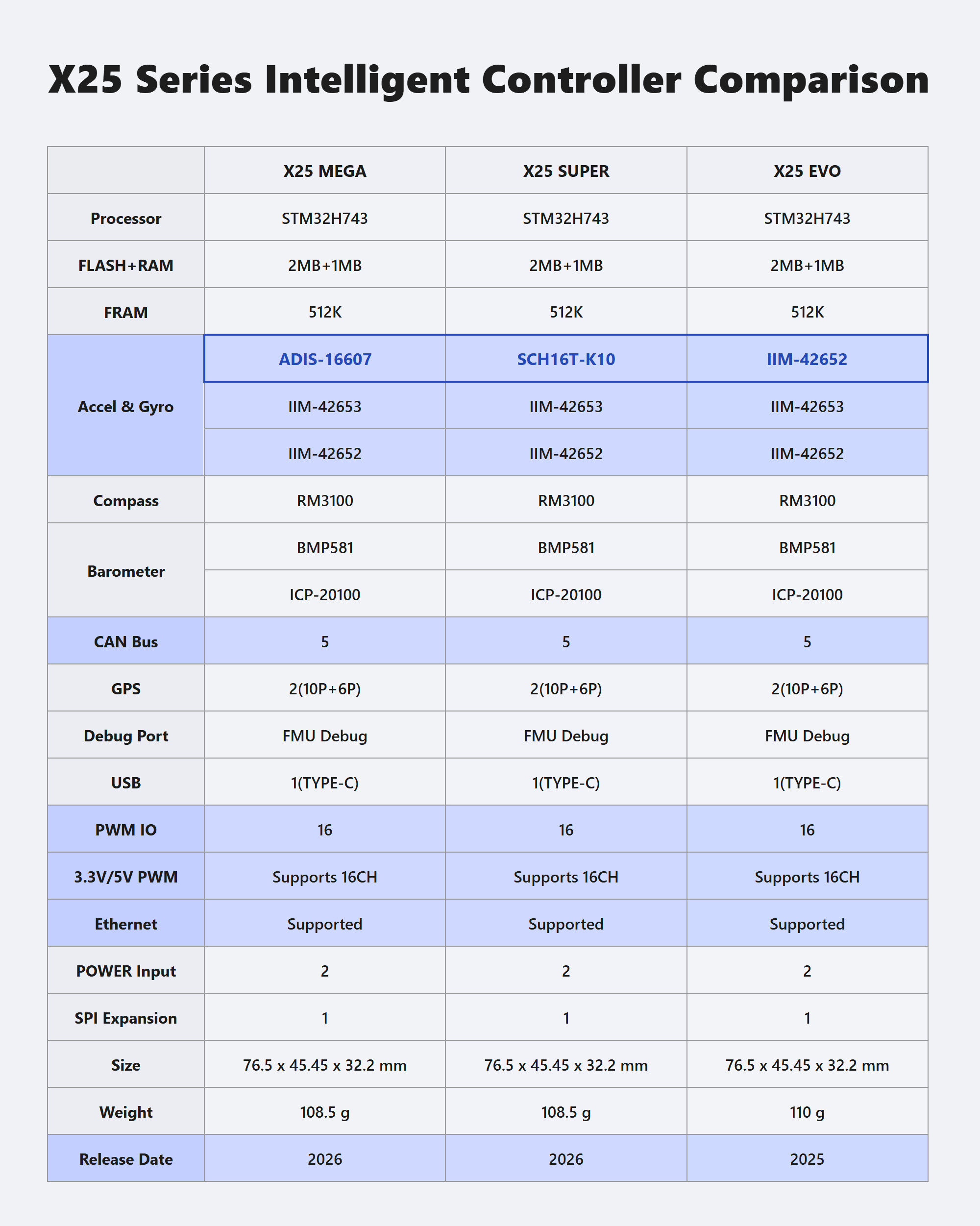

Comparison charts
Dimension drawing
