C-RTK RTK receiver
Description

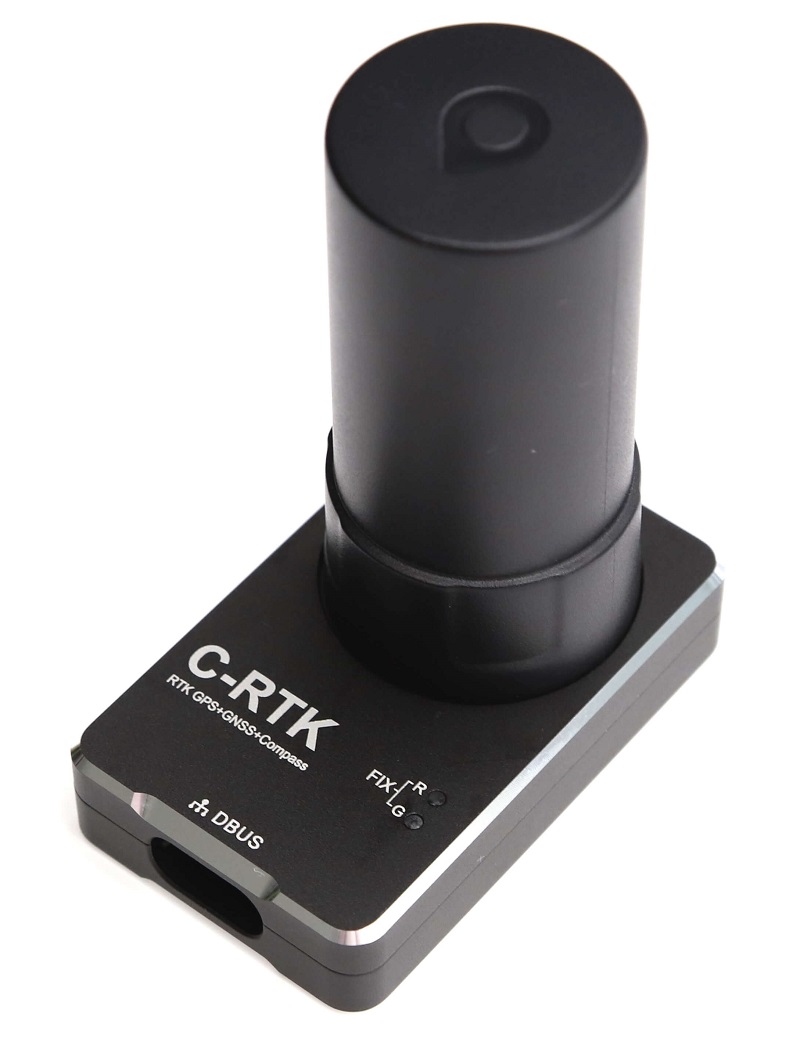

The CUAV C-RTK GPS receiver is an RTK GPS module for mass market launched by CUAV. A complete RTK system consists of at least two C-RTK modules (one for the base station and the others for the aircraft). Using RTK, PX4 can get its position with centimetre-level accuracy, which is much more accurate than can be provided by a normal GPS.
Purchase
Key Features
- Receiver type
- RTK Receiver: ublox M8P
- Second Receiver: ublox M8N
- GNSS
- GPS, GLONASS, BeiDou
- GNSS Bands
- L1C/A, L1OF, B1I
- Nav. update rate
- RTK Up to 8 Hz
- Position accuracy
- 3D FIX: 2.5 m; Differential (RTK): 0.025 m
- Convergence time
- RTK < 60 sec
- Acquisition
- Cold starts 26 s
- Aided starts 2 s
- Reacquisition 1 s
- Sensitivity
- Tracking & Nav –160 dBm
- Cold starts –148 dBm
- Hot starts –156 dBm
- Reacquisition –158 dBm
- Assistance
- AssistNow GNSS Online
- OMA SUPL & 3GPP compliant
- Interfaces
- 2 UART
- 1 USB V2.0 full speed 12 Mbit/s
- 1 I2C
- Protocols
- NMEA
- UBX binary
- RTCM version 3.x
- Electrical data
- Supply voltage 4.5 V to 6 V
- Operating temp –20 °C to +85 °C
